ggplot 基础

阅读信息

约 169 个字  10 分钟  本页总访问量：加载中... 次

ggplot2 基础结构

ggplot 的语法基于 图形语法 (Grammar of Graphics)：

S
1
ggplot(data, aes(x, y)) + geom_xxx() + ...

  • data：数据集

  • aes()：映射（x 轴、y 轴、颜色、大小、形状等

  • geom_xxx()：几何对象（点、线、柱状图……）

  • +：叠加图层

先加载示例数据

S
1
2
3
4
library(ggplot2)

data(mtcars)
head(mtcars)
Text Only
1
2
3
4
5
6
7
##                    mpg cyl disp  hp drat    wt  qsec vs am gear carb
## Mazda RX4         21.0   6  160 110 3.90 2.620 16.46  0  1    4    4
## Mazda RX4 Wag     21.0   6  160 110 3.90 2.875 17.02  0  1    4    4
## Datsun 710        22.8   4  108  93 3.85 2.320 18.61  1  1    4    1
## Hornet 4 Drive    21.4   6  258 110 3.08 3.215 19.44  1  0    3    1
## Hornet Sportabout 18.7   8  360 175 3.15 3.440 17.02  0  0    3    2
## Valiant           18.1   6  225 105 2.76 3.460 20.22  1  0    3    1

基础图形

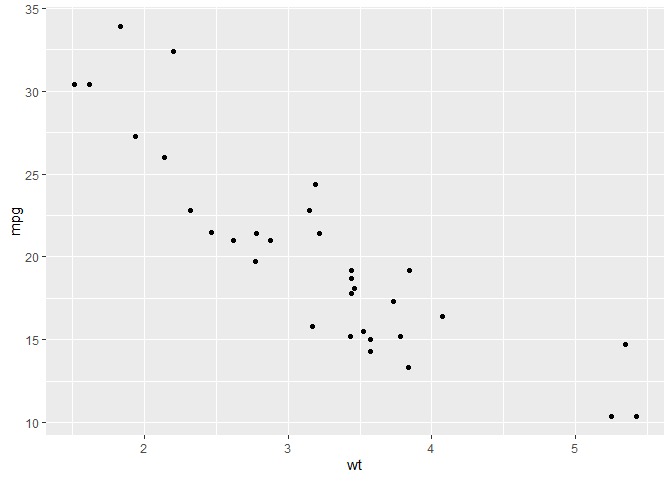

散点图

S
1
2
ggplot(mtcars, aes(x = wt, y = mpg)) +
  geom_point()

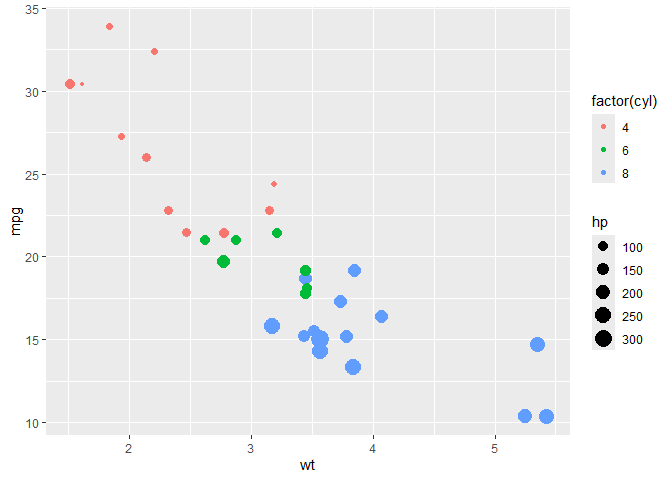

颜色、大小映射

S
1
2
ggplot(mtcars, aes(x = wt, y = mpg, color = factor(cyl), size = hp)) +
  geom_point()

factor() 基于…分类

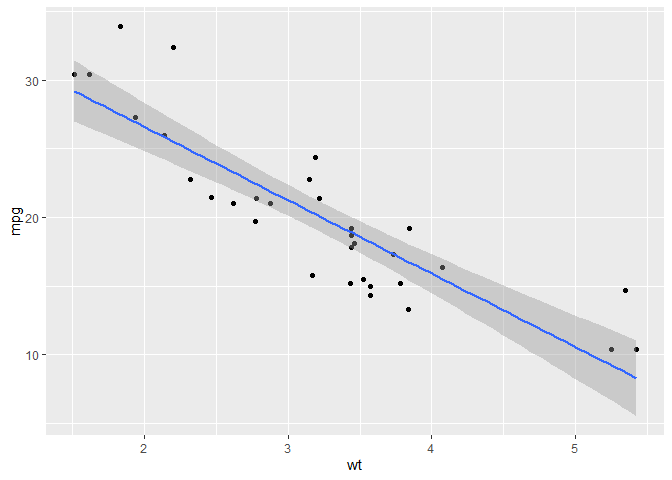

回归线

S
1
2
3
ggplot(mtcars, aes(x = wt, y = mpg)) +
  geom_point() +
  geom_smooth(method = "lm")   # 线性回归线，lm 指平滑曲线
## geom_smooth() using formula = 'y ~ x'

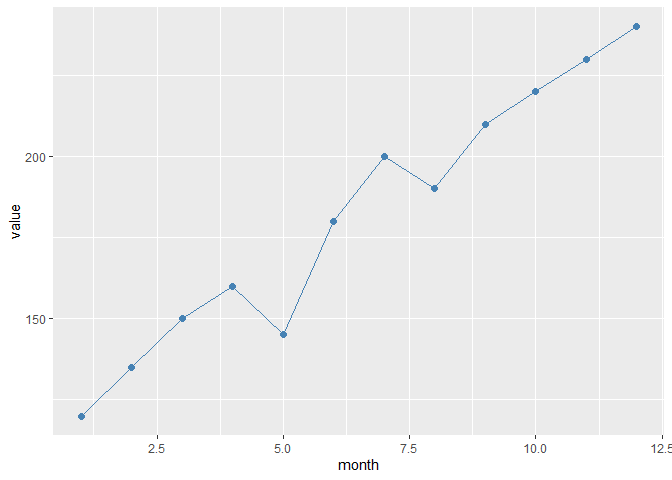

折线图

基本

S
1
2
3
4
5
6
7
8
sales <- data.frame(
  month = 1:12,
  value = c(120, 135, 150, 160, 145, 180, 200, 190, 210, 220, 230, 240)
)

ggplot(sales, aes(x = month, y = value)) +
  geom_line(color = "steelblue") +
  geom_point(color = "steelblue", size = 2)

多组

S
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
sales2 <- data.frame(
  month = rep(1:12, 2),
  value = c(
    c(120, 135, 150, 160, 145, 180, 200, 190, 210, 220, 230, 240),  # 部门A
    c(100, 115, 130, 140, 135, 150, 170, 175, 190, 195, 205, 215)   # 部门B
  ),
  dept = rep(c("A", "B"), each = 12)
)

ggplot(sales2, aes(x = month, y = value, color = dept)) +
  geom_line(size = 1.2) +
  geom_point()

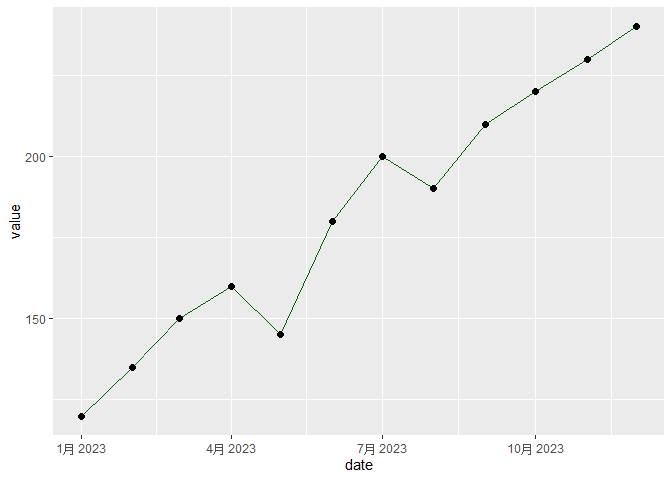

日期 (会自动优化程序包)

S
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
library(lubridate)

sales_date <- data.frame(
  date = seq(as.Date("2023-01-01"), by = "month", length.out = 12),
  value = c(120, 135, 150, 160, 145, 180, 200, 190, 210, 220, 230, 240)
)

ggplot(sales_date, aes(x = date, y = value)) +
  geom_line(color = "darkgreen") +
  geom_point(size = 2)

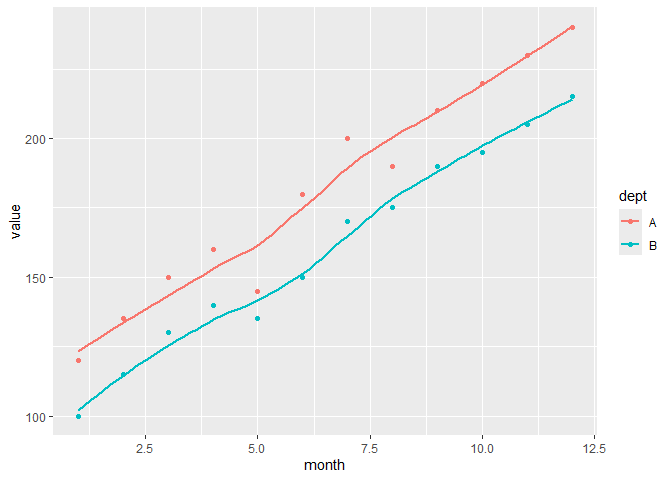

平滑线

S
1
2
3
ggplot(sales2, aes(x = month, y = value, color = dept)) +
  geom_point() +
  geom_smooth(se = FALSE)   # 默认用 loess 平滑

柱状 / 条形图

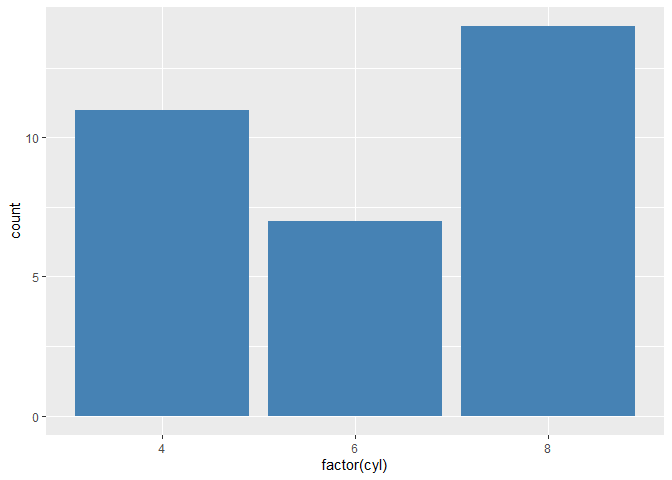

基本版（计数的）

S
1
2
ggplot(mtcars, aes(x = factor(cyl))) +
  geom_bar(fill = "steelblue")

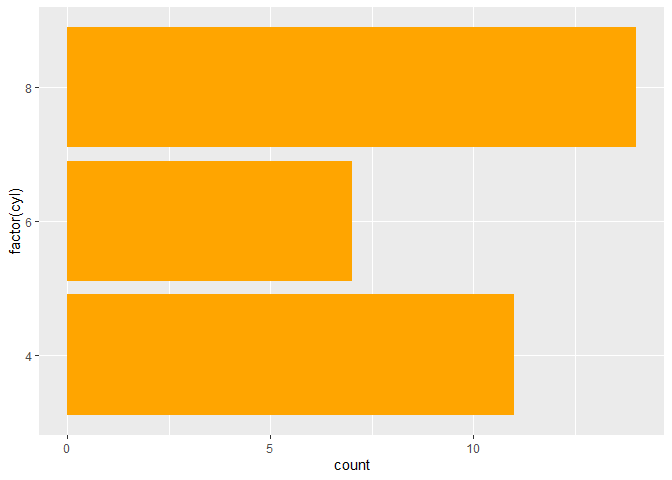

横向

S
1
2
3
ggplot(mtcars, aes(x = factor(cyl))) +
  geom_bar(fill = "orange") +
  coord_flip()

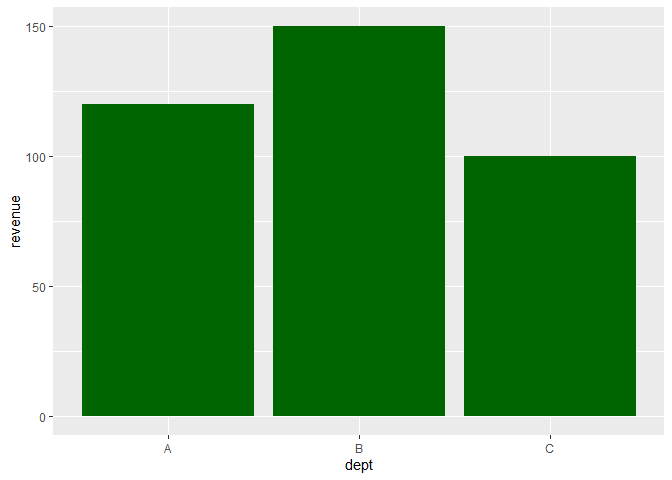

直接使用值

S
1
2
3
4
5
6
7
sales_sum <- data.frame(
  dept = c("A", "B", "C"),
  revenue = c(120, 150, 100)
)

ggplot(sales_sum, aes(x = dept, y = revenue)) +
  geom_col(fill = "darkgreen")

平均值

S
1
2
ggplot(mtcars, aes(x = factor(cyl), y = mpg)) +
  stat_summary(fun = mean, geom = "bar")

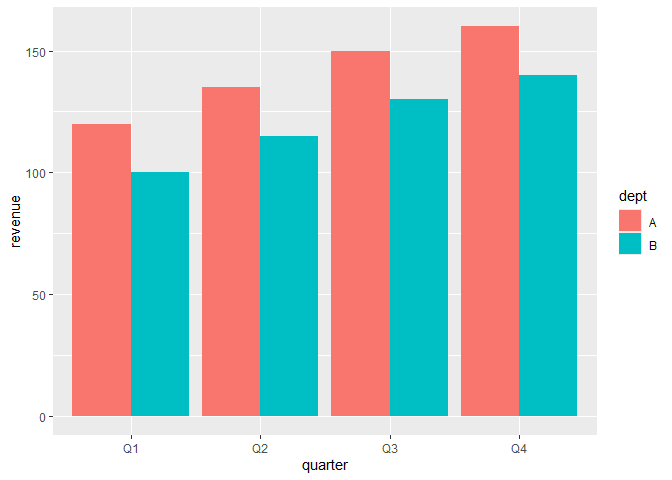

分组柱状图

S
1
2
3
4
5
6
7
8
sales_quarter <- data.frame(
  dept = rep(c("A", "B"), each = 4),
  quarter = rep(paste0("Q", 1:4), 2),
  revenue = c(120, 135, 150, 160, 100, 115, 130, 140)
)

ggplot(sales_quarter, aes(x = quarter, y = revenue, fill = dept)) +
  geom_col(position = "dodge")  # 并排柱状图

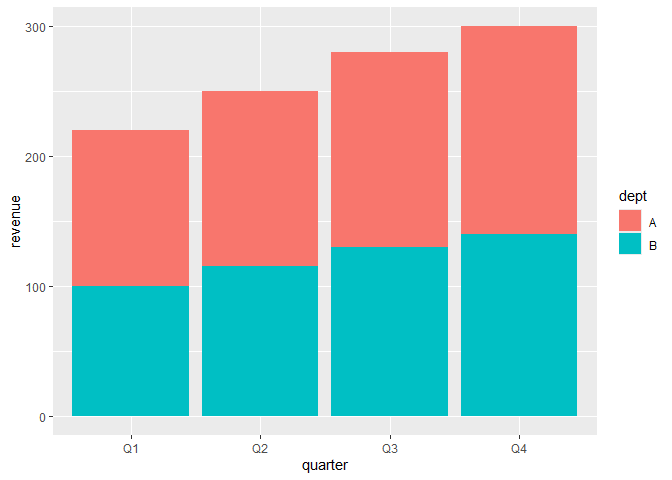

堆叠柱状图

S
1
2
ggplot(sales_quarter, aes(x = quarter, y = revenue, fill = dept)) +
  geom_col(position = "stack")

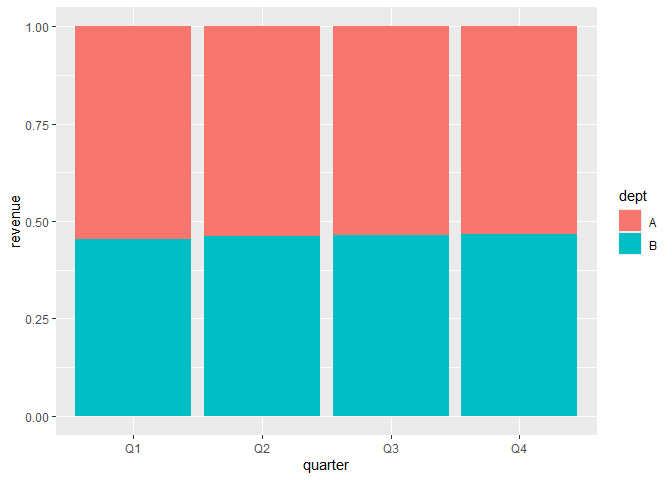

百分比柱状图

S
1
2
ggplot(sales_quarter, aes(x = quarter, y = revenue, fill = dept)) +
  geom_col(position = "fill")

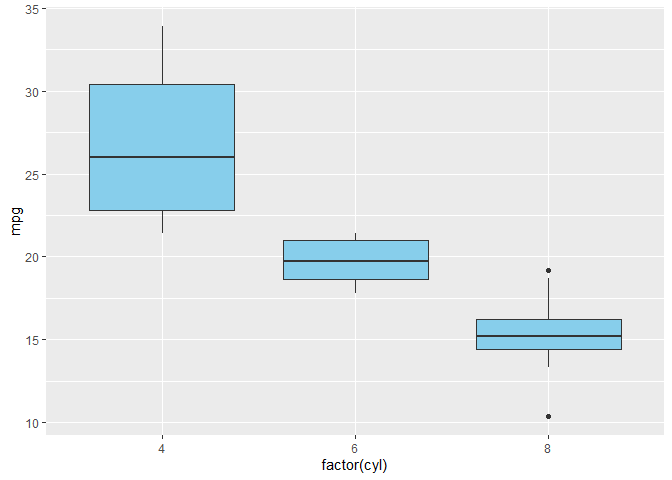

箱线图

基本

S
1
2
ggplot(mtcars, aes(x = factor(cyl), y = mpg)) +
  geom_boxplot(fill = "skyblue")

S
1
2
3
ggplot(mtcars, aes(x = factor(cyl), y = mpg)) +
  geom_boxplot(fill = "lightgray") +
  geom_jitter(width = 0.2, color = "red", alpha = 0.6)  # 点稍微错开一些

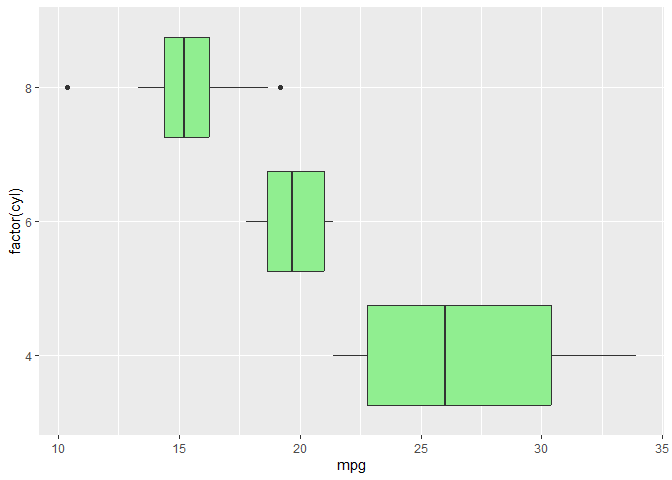

水平箱线图 (改 factor 为 y)

S
1
2
ggplot(mtcars, aes(x = mpg, y = factor(cyl))) +
  geom_boxplot(fill = "lightgreen")

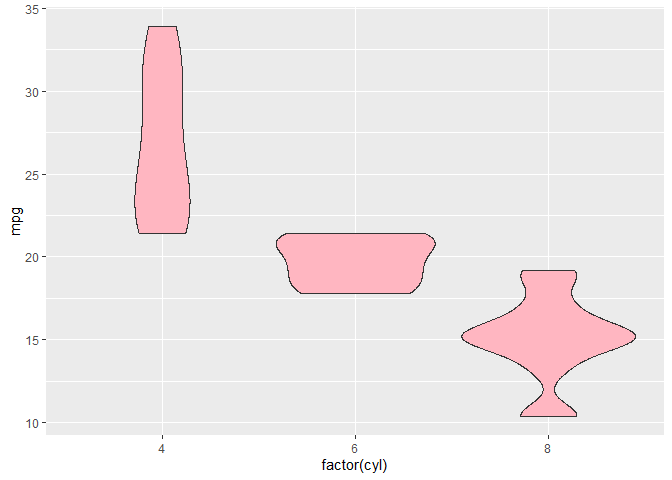

小提琴图

基本

S
1
2
ggplot(mtcars, aes(x = factor(cyl), y = mpg)) +
  geom_violin(fill = "lightpink")

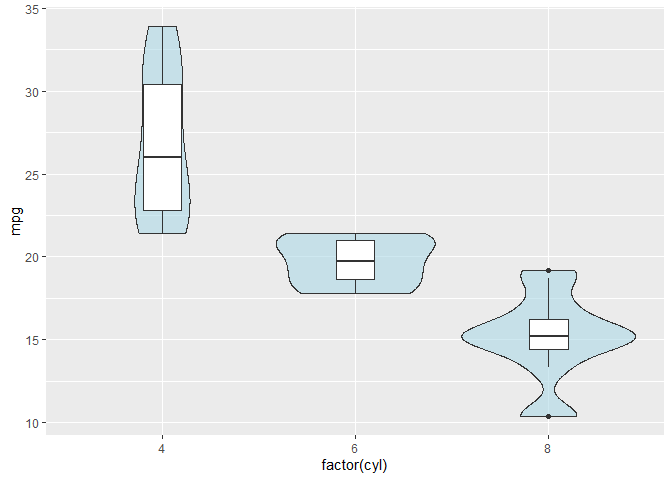

加上箱线图

S
1
2
3
ggplot(mtcars, aes(x = factor(cyl), y = mpg)) +
  geom_violin(fill = "lightblue", alpha = 0.6) +
  geom_boxplot(width = 0.2, fill = "white")

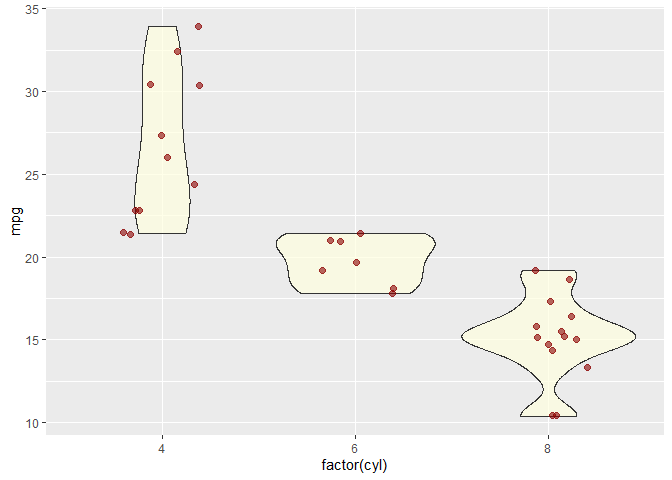

加散点

S
1
2
3
ggplot(mtcars, aes(x = factor(cyl), y = mpg)) +
  geom_violin(fill = "lightyellow", alpha = 0.7) +
  geom_jitter(width = 0.2, size = 2, alpha = 0.6, color = "darkred")

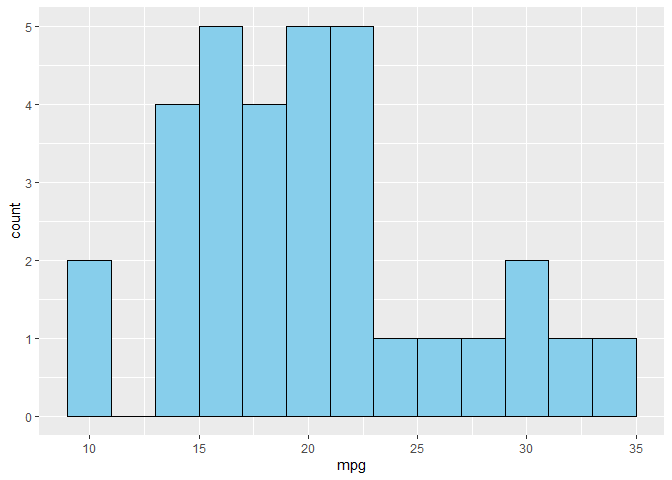

直方图

S
1
2
ggplot(mtcars, aes(x = mpg)) +
  geom_histogram(binwidth = 2, fill = "skyblue", color = "black")

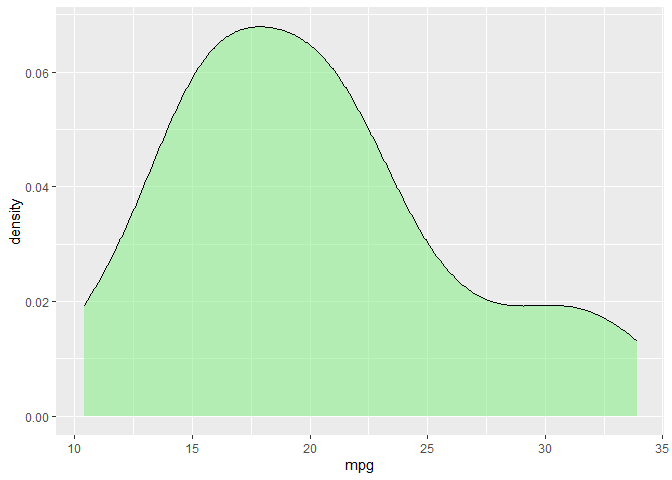

密度图

S
1
2
ggplot(mtcars, aes(x = mpg)) +
  geom_density(fill = "lightgreen", alpha = 0.6)

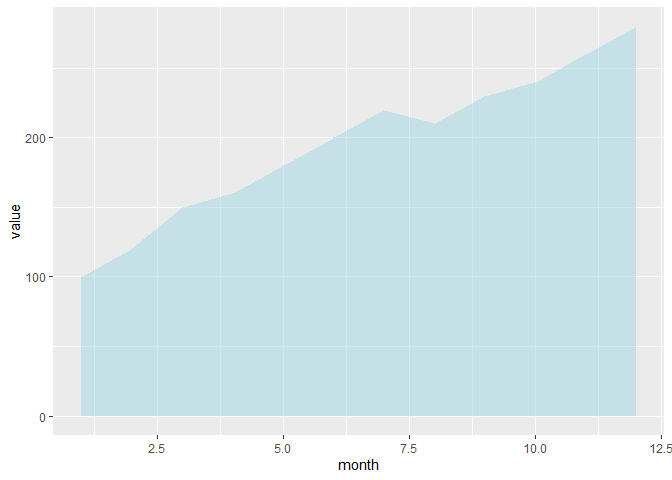

面积图

S
1
2
3
4
5
6
7
8
9
library(dplyr)

sales <- data.frame(
  month = 1:12,
  value = c(100, 120, 150, 160, 180, 200, 220, 210, 230, 240, 260, 280)
)

ggplot(sales, aes(x = month, y = value)) +
  geom_area(fill = "lightblue", alpha = 0.6)

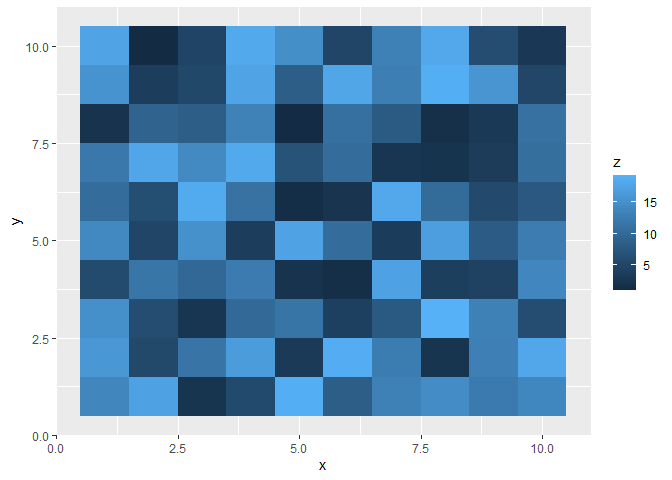

热力图

S
1
2
3
4
5
df <- expand.grid(x = 1:10, y = 1:10)
df$z <- runif(100, 1, 20)

ggplot(df, aes(x, y, fill = z)) +
  geom_tile()

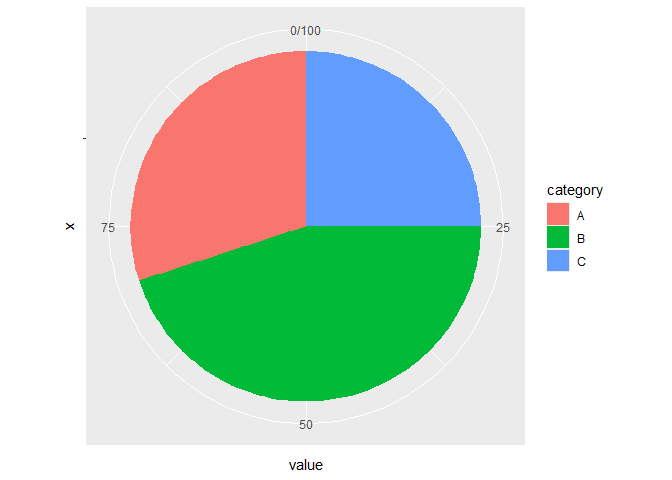

饼图 (geom_bar + coord_polar)

S
1
2
3
4
5
6
7
8
df <- data.frame(
  category = c("A", "B", "C"),
  value = c(30, 45, 25)
)

ggplot(df, aes(x = "", y = value, fill = category)) +
  geom_col(width = 1) +
  coord_polar(theta = "y")

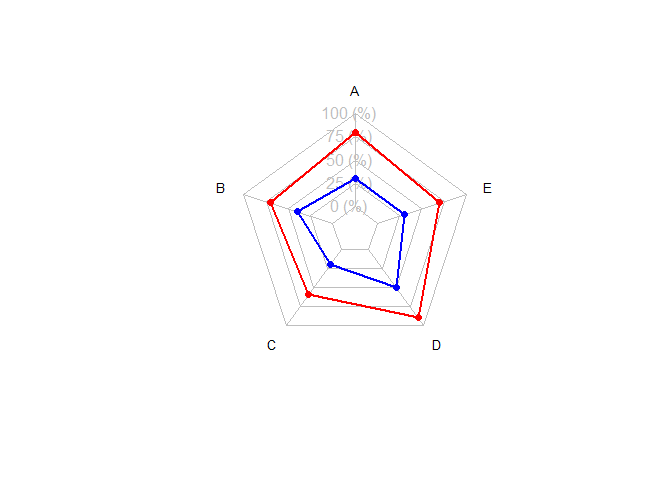

雷达图

使用 fmsb

S
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
library(fmsb)

# 准备数据：第一行 = 最大值，第二行 = 最小值
df <- data.frame(
  A = c(10, 0, 8, 3),
  B = c(10, 0, 7, 4),
  C = c(10, 0, 6, 2),
  D = c(10, 0, 9, 5),
  E = c(10, 0, 7, 3)
)

# 画雷达图
radarchart(df,
           axistype = 1,
           pcol = c("red", "blue"),
           plwd = 2,
           plty = 1,
           cglcol = "grey", cglty = 1, axislabcol = "grey",
           vlcex = 0.8)
