Lec 14 Ray Tracing 2(Acceleration)

阅读信息

约 416 个字  5 分钟  本页总访问量：加载中... 次

Uniform Spatial Partitions (Grids)

Preprocesss: Build Acceleration Grid

  1. Find bounding box
  2. Create grid
  3. Store each object in overlapping cells (将和物体表面有相交的各自标记)
  4. Step through grid in ray traversal order

认为光线和盒子求交计算快、光线和物体求交计算慢

根据光线的方向大致判断和哪些盒子相交。
当光线和盒子相交但盒子里没有物体（没被标记）时，跳过；
当光线和盒子相交但盒子里有物体时，计算是否和物体相交。

若只需要找最近交点，找到交点后停止。

怎么确定划分的格子数？

格子太少，加速效果差；格子太多，光线和盒子的计算增加。

格子数=C*场景中物体数，其中 3D 时 C 约为 27。

加速效果？

场景中物体分布均匀、物体多时，加速效果好；
场景中物体分布不均匀、部分区域空旷时，加速效果差；

Spatial Partition

KD-Tree Pre-Processing

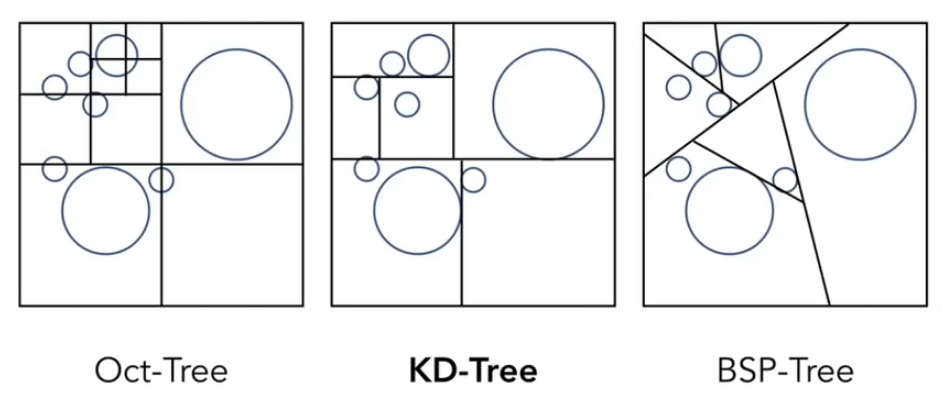

Spatial partition examples:

  • Oct-Tree（八叉树）
    将整个场景用包围盒包围，分成 8 块（3D），对每一个分成的区域再分成 8 块，直到其中一块中物体数量足够少
  • KD-Tree
    每次分割时仅分成两块，分割方向 xyz 交替
  • BSP-Tree 每次分割时仅分成两块，方向任意

spatial partition

KD-Tree storage:

Internal nodes store:

  • split axis: x-, y- or z-
  • split position: coordinate of split plane along axis
  • children: pointers to child nodes

Leaf nodes store:

  • list of objects

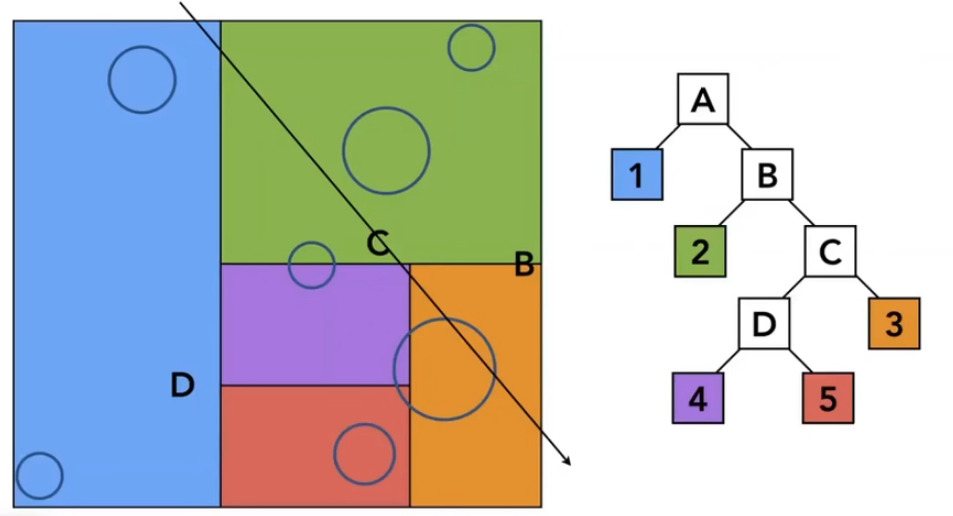

Traversing a KD-Tree:

从整个场景开始，如果有交点，则看和子节点对应的盒子是否有交点，直到检查完所有有交点的叶节点。

KDtree

问题：

  1. 需要知道包围盒和哪些三角形相交
  2. 一个物体可出现在多个包围盒中

Object Partition & Bounding Volume Hierarchy (BVH)

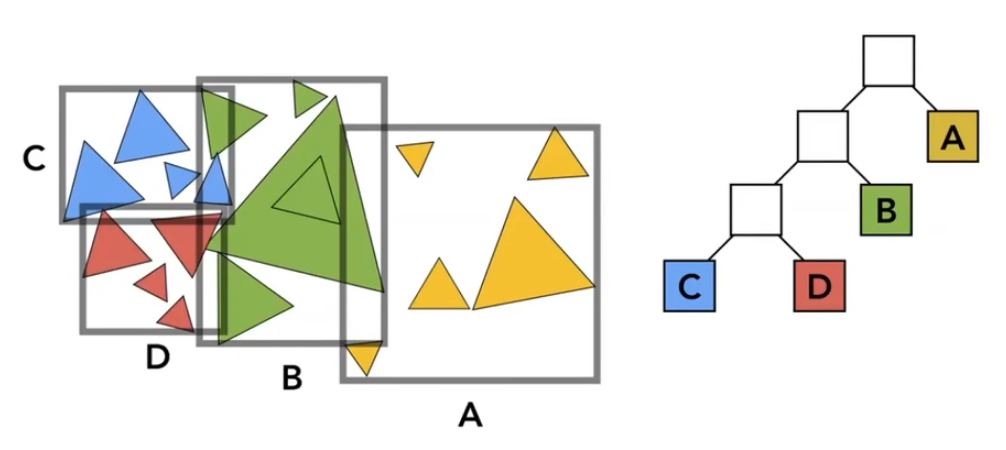

每次划分将三角形分成两组，分别重新求包围盒

BVH 中一个物体只出现在一个包围盒中，不同的包围盒可能相交

KD-Tree 划分空间，BVH 划分物体。实际 BVH 应用更广泛。

BVH

How to subdivide a node?

Choose a dimension to split

  • 1: Always choose the longest axis in node
  • 2: Split node at locaton of median object (balances tree)

Termination criteria?

Stop when node contains few elements (e.g. 5)

BVH traversal

C
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
Intersect(Ray ray, BVH node) {
  if (ray misses node.bbox) return;

  if (node is a leaf node) {
    test intersection with all objs;
    return closet intersection;
  }

  hit1 = Intersect(ray, node.child1);
  hit2 = Intersect(ray, node.child2);
  return the closer of hit1, hit2;
}

Basic Radiometry

Measurement system and units for illumination.

Accurate measure the spatial properties of light
New terms: radiant flux, intersity, irradiance, radiance

Perform lighting calculation in a physically correct manner

Radiant Energy and Flux (Power)

Radiant energy is the energy of electromagnetic radiation. It is measured in units of joules, and denoted by the symbol:

\[Q\,[J=Joule]\]

Radiant flux (power) is the energy emitted, reflected, transmitted or received, per unit time.

\[\Phi\equiv\frac{\mathrm{d}Q}{\mathrm{d}t}\,[W=Watt]\,[ln=lumen]\]

Flux: photons flowing through a sensor in unit time

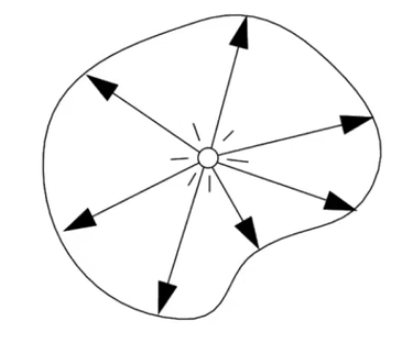

Radiant Intensity

Radiant (luminous) intensity is the power per unit solid angle emitted by a point light source.

Radiant Intensity

\[I(\omega)\equiv\frac{\mathrm{d}\Phi}{\mathrm{d}\omega}\]
\[\left[\frac{W}{sr}\right]\,\left[\frac{lm}{sr}=cd=candela\right]\]

Angles and solid angles

Angle: ratio of subtended arc length on circle to radius

  • \(\theta=frac{l}{r}\)
  • Circle has \(2\pi\) radians

Solid angle: ratio of subtended area on sphere to radius squared

  • \(\Omega=\frac{A}{r^2}\)
  • Sphere has \(4\pi\) steradians

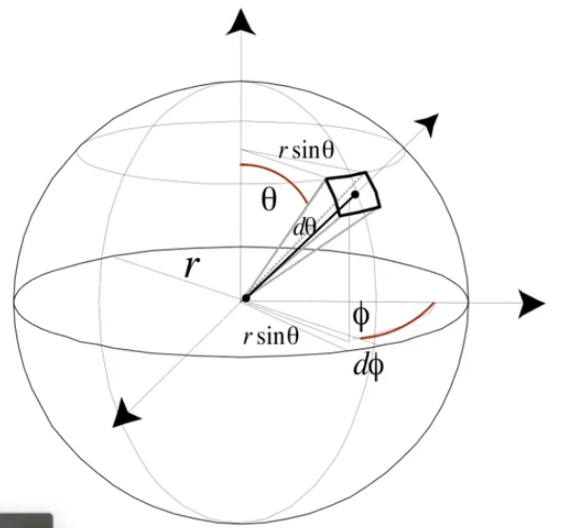

Differential solid angles:

solid angle

\[ \begin{align*} \mathrm{d}A&=(r\mathrm{d}\theta)(r\sin\theta\mathrm{d}\phi)\\ &=r^2\sin\theta\mathrm{d}\theta\mathrm{d}\phi \end{align*} \]
\[\mathrm{d}\omega=\frac{\mathrm{d}A}{r^2}=\sin\theta\mathrm{d}\theta\mathrm{d}\phi\]

Sphere:

\[ \begin{align*} \Omega&=\int_{S^2}\mathrm{d}\omega \\ &=\int_0^{2\pi}\int_0^{\pi}\sin\theta\mathrm{d}\theta\mathrm{d}\phi \\ &=4\pi \end{align*} \]

Isotropic point source:

\[ \begin{align*} \Phi&=\int_{S^2}I\mathrm{d}\omega \\ &=4\pi I \end{align*} \]
\[I=\frac{\Phi}{4\pi}\]
